FG414_0600 - ATTACHMENT PARTS LIST (VS19 S1820)

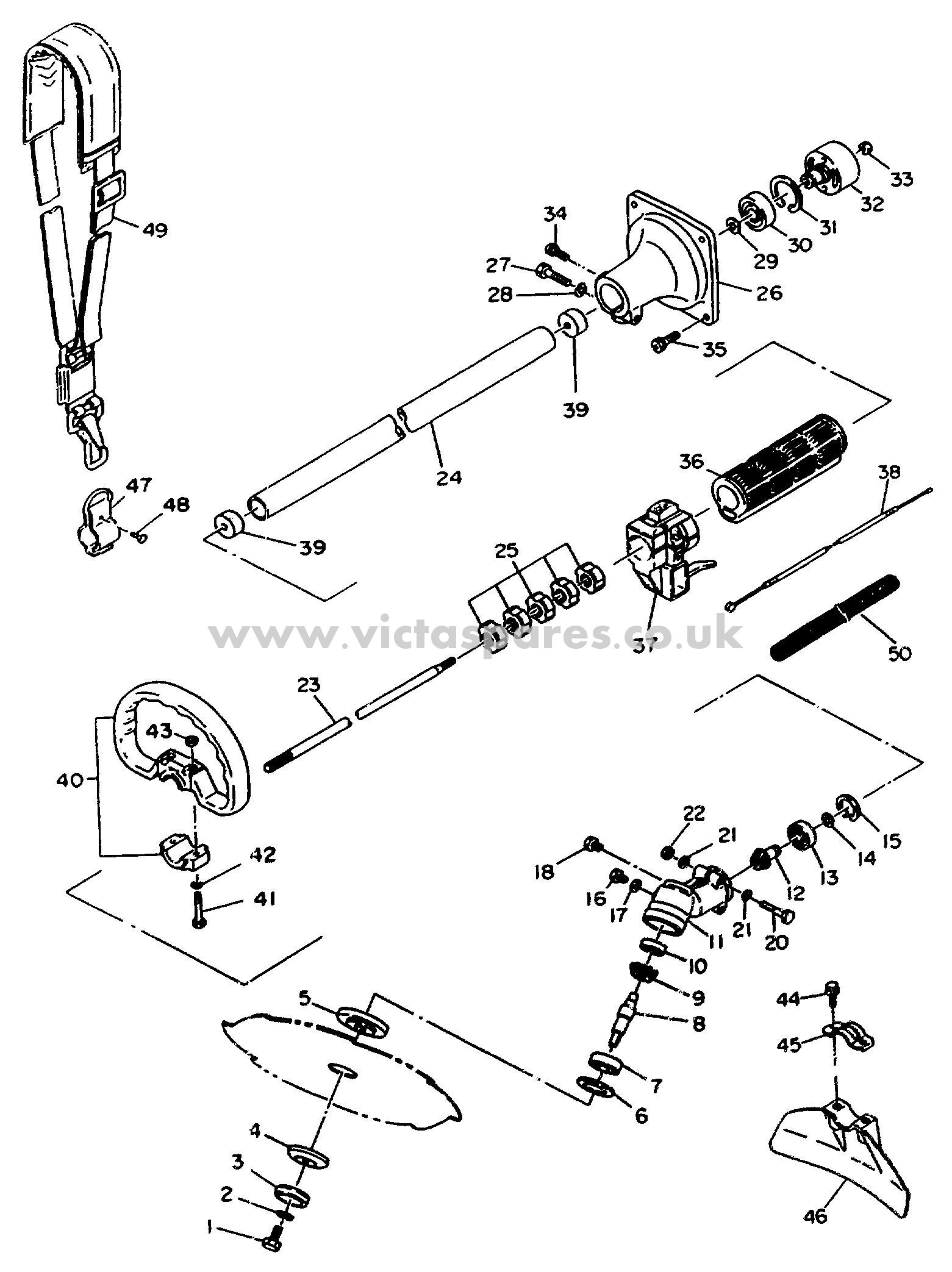

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG414_0600

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
708239 GEAR HOUSING S182/S262 708118 N/A POA
708094 CLUTCH HOUSING ASS S260 (OBSOLETE) N/A POA
708199 CLUTCH HOUSING ASSY GRAY £91.39 Add
703321 SAFETY GUARD ASSY S260 - RED (OBSOLETE) N/A POA
703388 GUARD ASSY. ORANGE N/A POA
001 710040 BLADE SCREW NEW 255 (OBSOLETE) N/A POA
002 710041 SPRING WASHER £2.60 Add
003 702399 CUP WASHER £4.47 Add
004 708123 LOWER CLAMP S182/S262 (OBSOLETE) (OBSOLETE) N/A POA
005 708124 UPPER CLAMP S182/1820 (OBSOLETE) (OBSOLETE) N/A POA
006 621028 SNAP RING (OBSOLETE) (OBSOLETE) N/A POA
007 600012 BALL BEARING 6001DD 600016 £23.69 Add
008 708121 GEAR SHAFT S182/S262 £29.64 Add
009 708120 GEAR S182/S1820 £27.11 Add
010 606260 BALL BEARING £13.50 Add
011 708239 GEAR HOUSING S182/S262 708118 N/A POA
012 708119 PINION GEAR £36.11 Add
013 606091 BALL BEARING £18.71 Add
014 620009 SNAP RING (RED) £2.07 Add
015 621024 SNAP RING £2.43 Add
016 631608 CAP SCREW M6 X 8 (RED) £2.46 Add
017 650061 WASHER £2.38 Add
018 710026 BOLT M5 X 10 662510 £2.56 Add
020 630532 DNR £2.38 Add
021 650051 Washer Ø5 (OBSOLETE) N/A POA
022 702038 HEX NUT £2.77 Add
023 708049 DRIVESHAFT S260 N/A POA
024 708050 DRIVESHAFT HOUSING ASSY £91.57 Add
024 708050 DRIVESHAFT HOUSING ASSY £91.57 Add
026 708094 CLUTCH HOUSING ASS S260 (OBSOLETE) N/A POA
026 708199 CLUTCH HOUSING ASSY GRAY £91.39 Add
027 710021 BOLT M5 X 10 £2.77 Add
028 651050 WASHER 720153 (OBSOLETE) (OBSOLETE) N/A POA
029 620010 SNAP RING £2.77 Add
030 602002 BALL BEARING £13.49 Add
031 621030 SNAP RING £3.10 Add
032 708057 CLUTCH DRUM £27.11 Add
033 710023 NUT M4.5 S260 £4.20 Add
034 710026 BOLT M5 X 10 662510 £2.56 Add
035 710020 SCREW HEX M6X16 S260 £2.38 Add
036 709044 GRIP RIBBED 0245 S260 £21.43 Add
037 708115 THROTTLE LEVER 24.5 ID (OBSOLETE) (OBSOLETE) N/A POA
038 722491 CABLE THROTTLE S262/S2620 (OBSOLETE) N/A POA
040 703390 HANDLE ASSY LOOP £30.93 Add
041 630640 SCREW £2.77 Add
042 650060 Washer Ø6 (OBSOLETE) (OBSOLETE) N/A POA
043 640600 HEX NUT (OBSOLETE) (OBSOLETE) N/A POA
044 710020 SCREW HEX M6X16 S260 £2.38 Add
045 703323 CLAMP S260 £9.40 Add
046 703322 SAFETY GUARD (OBSOLETE) N/A POA
046 703321 SAFETY GUARD ASSY S260 - RED (OBSOLETE) N/A POA
047 727027 CLAMP ASSY S260 727024 (OBSOLETE) N/A POA
048 632518 SCREW £2.38 Add
049 727063 SHOULDER STRAP 727014 £63.88 Add
050 702651 CORRUGATED TUBE £4.49 Add
