FG415_0200 - ENGINE PARTS LIST

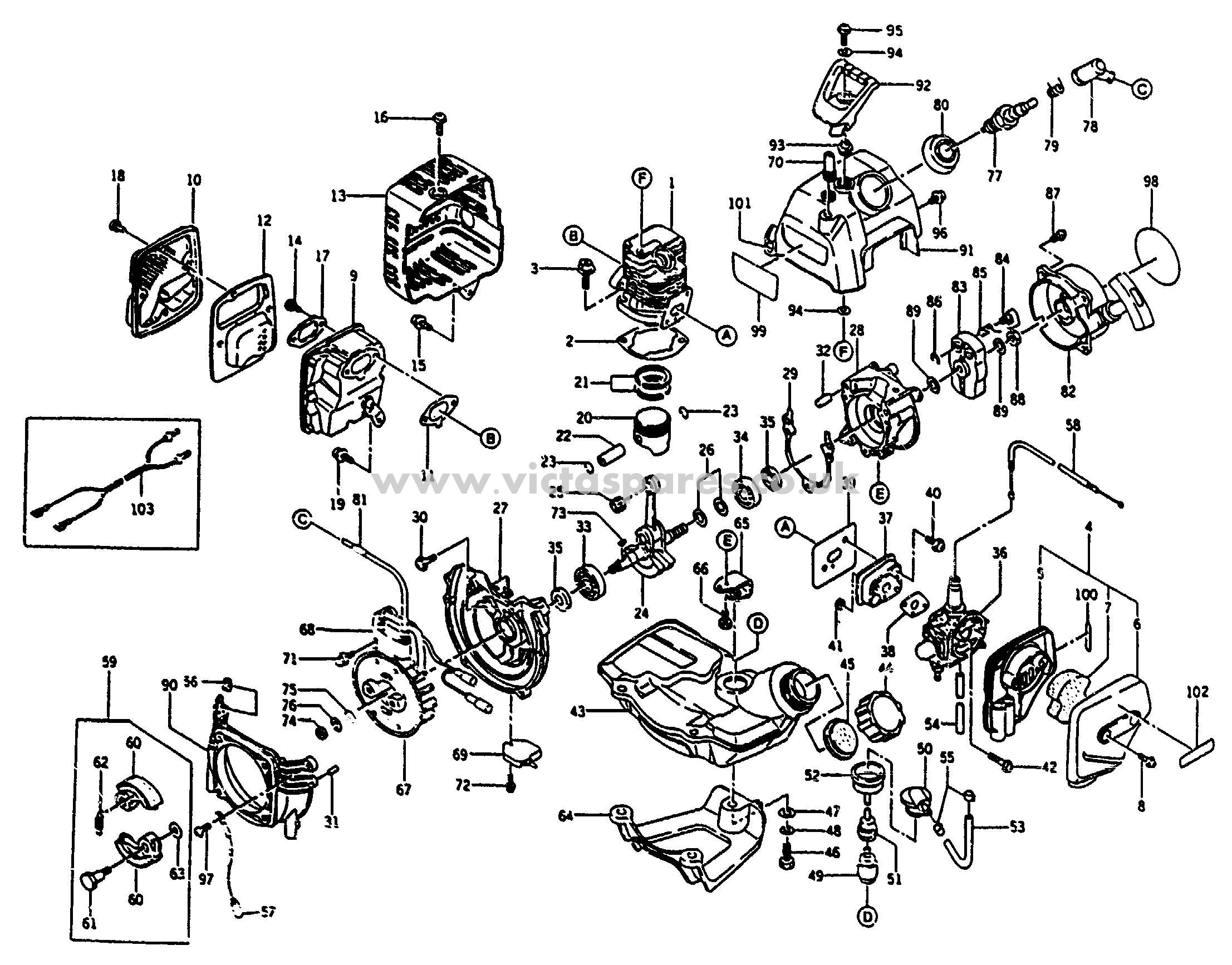

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	722589	CYLINDER S262/S2620 720921	N/A	POA
002	722590	CYL. BASE GASKET S262/S2620 722500	N/A	POA
003	722826	DNR	£2.96	Add
004	720924	AIR FILTER ASSY S262/S2620	£32.52	Add
005	720925	CASE AIR FILTER S262/S2620	£21.72	Add
006	720926	CAP AIR FILTER S262/S2620	£18.71	Add
007	717277	ELEMENT S260 (OBSOLETE) (OBSOLETE)	N/A	POA
008	720927	SCREW	£2.38	Add
009	720928	BODY HALF MUFFLER S262/S2620	£57.65	Add
010	720929	BODY HALF MUFFLER S262/S2620	£36.11	Add
011	720930	GASKET MUFFLER S262/S2620	£6.01	Add
012	720931	BAFFLE PLATE MUFFLER S262/0	£8.87	Add
013	720932	COVER MUFFLER S262/S2620	N/A	POA
014	720933	DNR	£3.51	Add
015	720934	SCREW (OBSOLETE)	N/A	POA
016	722907	SCREW 720935	£4.20	Add
017	720936	WASHER	£3.81	Add
018	720937	SCREW	£2.38	Add
019	720938	SCREW	£2.38	Add
020	720939	PISTON S262/S2620	£57.65	Add
021	720494	RING SET PISTON S260	£31.83	Add
022	722018	PISTON PIN	£20.34	Add
023	722119	SNAP RING	£3.10	Add
024	720940	DNR	£192.35	Add
025	722257	NEEDLE BEARING	£19.65	Add
026	720257	DNR	£2.77	Add
026	720258	SHIM T=0.2 (DNR	£2.77	Add
026	720259	SHIM T=0.4 (DNR	£2.77	Add
026	720262	SHIM T=0.6 (DNR)	£2.77	Add
027	720941	CRANKCASE S262/S2620	£112.50	Add
028	720942	CRANKCASE S262/S2620	£115.83	Add
029	722501	C/CASE GASKET S262/S2620	£5.21	Add
030	722034	SCREW	£2.77	Add
031	722032	DOWEL PIN	£2.38	Add
032	717041	PIN DOWEL S260 (DNR)	£2.33	Add
033	720275	BEARING BALL (6200C3)	£20.53	Add
034	720276	Ball Bearing 6000C3	£18.71	Add
035	720277	SEAL OIL S260	£8.16	Add
036	720945	CARB ASSY. S262/S2620	£302.45	Add
037	720946	INSULATOR S262/S2620	N/A	POA
038	722537	GASKET (OBSOLETE)	N/A	POA
039	722884	GASKET 722502	£9.79	Add
040	720899	SCREW	£2.77	Add
041	722784	DNR (OBSOLETE)	N/A	POA
042	717289	SCREW 5X43 S260 (DNR	£2.54	Add
043	722917	FUEL TANK S262/S2620 720948	N/A	POA
044	717293	TANK CAP S260 (OBSOLETE)	N/A	POA
045	722165	BREATHER (OBSOLETE)	N/A	POA
046	720949	BOLT	£3.10	Add
047	722363	WASHER 720152	£2.77	Add
048	651050	WASHER 720153 (OBSOLETE) (OBSOLETE)	N/A	POA
049	810046-SGU	FUEL FILTER 720712 (OBSOLETE)	N/A	POA
050	720812	JOINT (OBSOLETE) (OBSOLETE)	N/A	POA
051	720024	CLAMP (OBSOLETE) (OBSOLETE)	N/A	POA
052	720767	STRAINER PIPE	£27.52	Add
053	720951	TUBE (OBSOLETE)	N/A	POA
054	720952	TUBE (OBSOLETE)	N/A	POA
055	720627	CLIP (OBSOLETE)	N/A	POA
056	722367	GROMMET	£3.81	Add
057	722373	LEAD WIRE	£6.08	Add
058	722491	CABLE THROTTLE S262/S2620 (OBSOLETE)	N/A	POA
059	722604	CLUTCH ASSY S182/S262 722497	N/A	POA
060	722498	SHOE CLUTCH S182/S262	£39.02	Add
061	720266	CLUTCH PIN	£13.87	Add
062	720866	CLUTCH SPRING	£8.16	Add
063	720269	WASHER (DNR)	£4.49	Add
064	720955	STAND S262/S2620	£10.99	Add
065	720956	BRACKET FUEL TANK S262/S2620	£4.49	Add
066	720957	BOLT	£2.31	Add
067	720958	DNR	N/A	POA
068	722366	NO LONGER AVAILABLES	N/A	POA
069	720910	IGNITOR S182/S262 (OBSOLETE)	N/A	POA
070	720960	GROMMET	£3.10	Add
071	720961	BOLT	£2.31	Add
072	720310	SCREW 4X8 (DNR)	£2.31	Add
073	722026	KEY	£4.92	Add
074	640600	HEX NUT (OBSOLETE) (OBSOLETE)	N/A	POA
075	717158	WASHER	£2.18	Add
076	720581	SPRING WASHER (DNR)	£2.18	Add
077	BM6A	SPARK PLUG	£5.54	Add
078	720514	PLUG CAP S260 (OBSOLETE)	N/A	POA
079	720053	SPRING (OBSOLETE)	N/A	POA
080	720963	BOOT	£5.21	Add
081	720964	TUBE	£2.77	Add
082	720965	STARTER ASSY S262/S2620 (OBSOLETE)	N/A	POA
083	720966	PULLEY STARTER S262/S2620	£17.55	Add
084	720967	PAWL STARTER ASSY S262/S2620	£8.47	Add
085	720968	SPRING STARTER ASSY S262/S2620	£6.69	Add
086	730788	E RING 720314	£2.80	Add
087	720934	SCREW (OBSOLETE)	N/A	POA
088	720025	WEIGHT 720027	£35.76	Add
089	720517	WASHER S260 (DNR	£2.96	Add
090	720434	NO LONGER AVAILABLE	N/A	POA
090	722838	HOUSING FAN ORANGE	£75.38	Add
091	720435	GASKET	£8.87	Add
091	722830	SHROUD-ORANGE	£25.05	Add
092	720971	GUARD	£4.49	Add
093	722908	SPACER 720972	£5.07	Add
094	722909	WASHER 720973 (OBSOLETE)	N/A	POA
095	722906	SCREW 720974 (OBSOLETE)	N/A	POA
096	722907	SCREW 720935	£4.20	Add
097	717022	SCREW	£2.38	Add
103	722492	HARNESS LEAD WIRES	£20.53	Add
