FG770_0111 - AUXILIARY ENGINE COMPONENTS

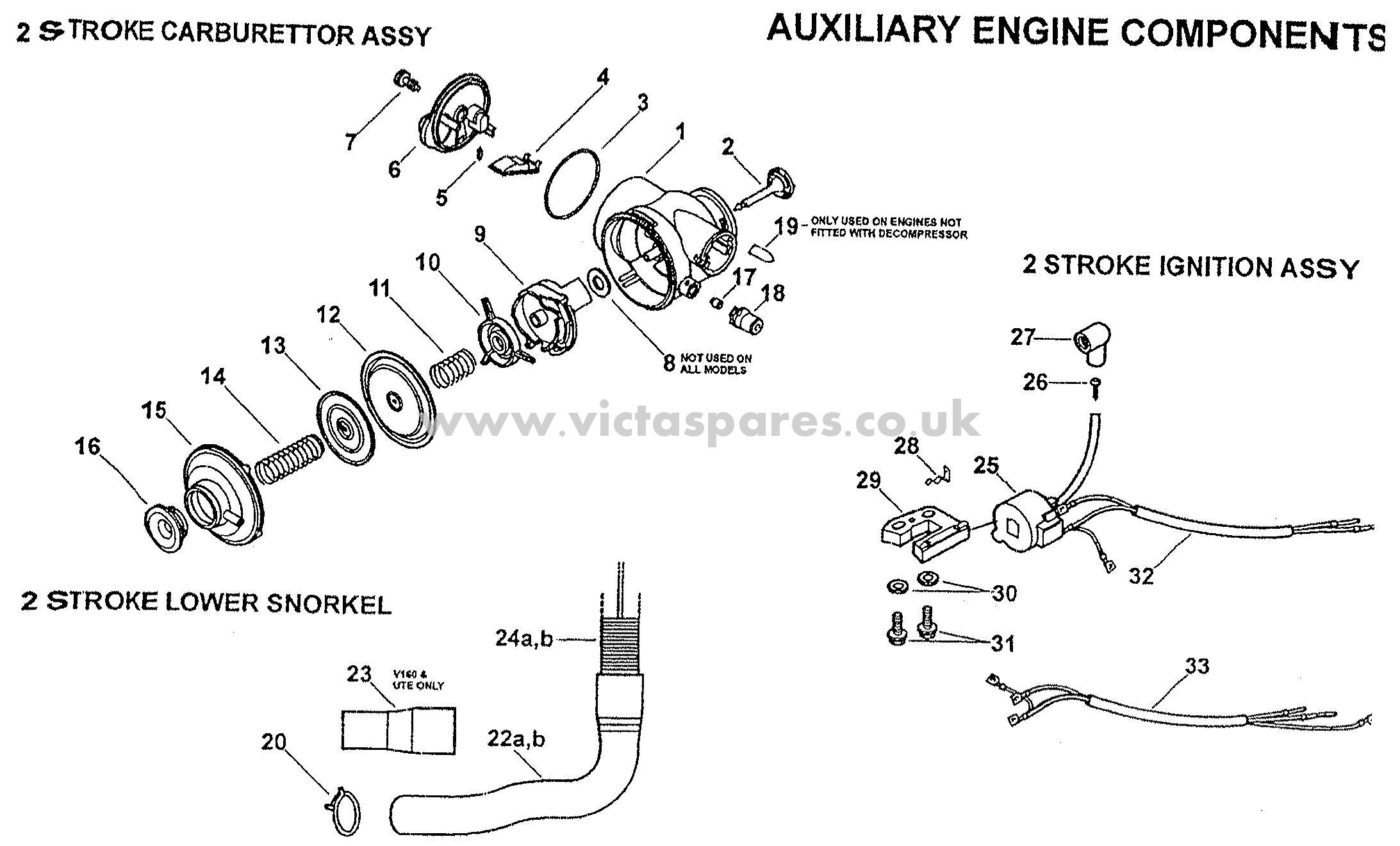

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG770_0111

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CR03616A CARBURETTOR ASSY £187.03 Add
CR03730A CARBY ASSY TAC (SPARES ONLY) £163.09 Add
CR03738A CARBI SUBASSY 60G CONT FR46 (0 £180.05 Add
CR03773A ASSY-CARBY KIT £121.07 Add
001 CR03661P CARBI BODY & POPPET VALVE PACK £107.40 Add
002 CR03593A VALVE £25.17 Add
003 VBP0022 O RING £5.07 Add
004 CR03402U FLOAT ASSY £37.42 Add
005 CR03404A NEEDLE (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
006 CR03501A CAP (OBSOLETE) N/A POA
008 CR03619A NO LONGER AVAILABLE N/A POA
009 CR03626U CAM (OBSOLETE) (OBSOLETE) N/A POA
010 CR03407U LIFTER CARBY £29.12 Add
012 CR03635U DIAPHRAGM CARBI (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A POA
013 CR03716A DIAPHRAM WASHER,MODIFIED £7.77 Add
015 CR03636A CAP £23.76 Add
016 CR03637A PLUG £10.72 Add
017 CR03627U PLUG CUT OUT SWITCH £5.73 Add
018 VBP0010 COVER-SWITCH £7.74 Add
019 CR03732U [2 STROKE CARBURETTOR ASSY] CAP - LOW COMP ENGINE ONLY (OBSOLETE) N/A POA
020 AF07574U CLAMP SNORKEL (RED) £11.09 Add
023 AF07803U ADAPTOR LWR STD SNORKEL CARBI (RED) £61.77 Add
025 MA05678AZ NO LONGER AVAILABLE N/A POA
026 HA25467D NO LONGER AVAILABLE N/A POA
027 VBP0025 COVER £6.43 Add
030 HA25311B WASHER £6.32 Add
031 HA21249D SCREW M8 X 19 £6.08 Add
032 MA05670A LEAD ASSY & SLEEVE COMPLETE NO(RED) £21.49 Add
033 MA05683A CABLE & SLEEVE ASSY KEYSTART C&C 98 £85.44 Add
07a CR03755A JET & MESH ASSY 3 RING 40 £22.16 Add
07b CR03685A NO LONGER AVAILABLE N/A POA
07c VBP0011 JET & MESH ASSY £14.08 Add
07d VBP0011 JET & MESH ASSY £14.08 Add
11a CR03642U SPRING 50 GRAMS £6.78 Add
11b CR03642U SPRING 50 GRAMS £6.78 Add
14a CR03669U SPRING £6.94 Add
14b CR03417U SPRING £9.68 Add
14c CR03643U SPRING RETURN 200G YELLOW £9.28 Add
14d CR03594U SPRING £9.28 Add
22a AF07655U LOWER ADAPTOR £83.66 Add
22b AF07832A LOWER ADAPTOR £82.77 Add
24a AF07804A NO LONGER AVAILABLE N/A POA
24b AF07833U SNORKEL £49.59 Add
