FG770_0127 - VlCTA POWER TORQUE 2 STROKE ENGINE - PROFESSIONAL SERIES

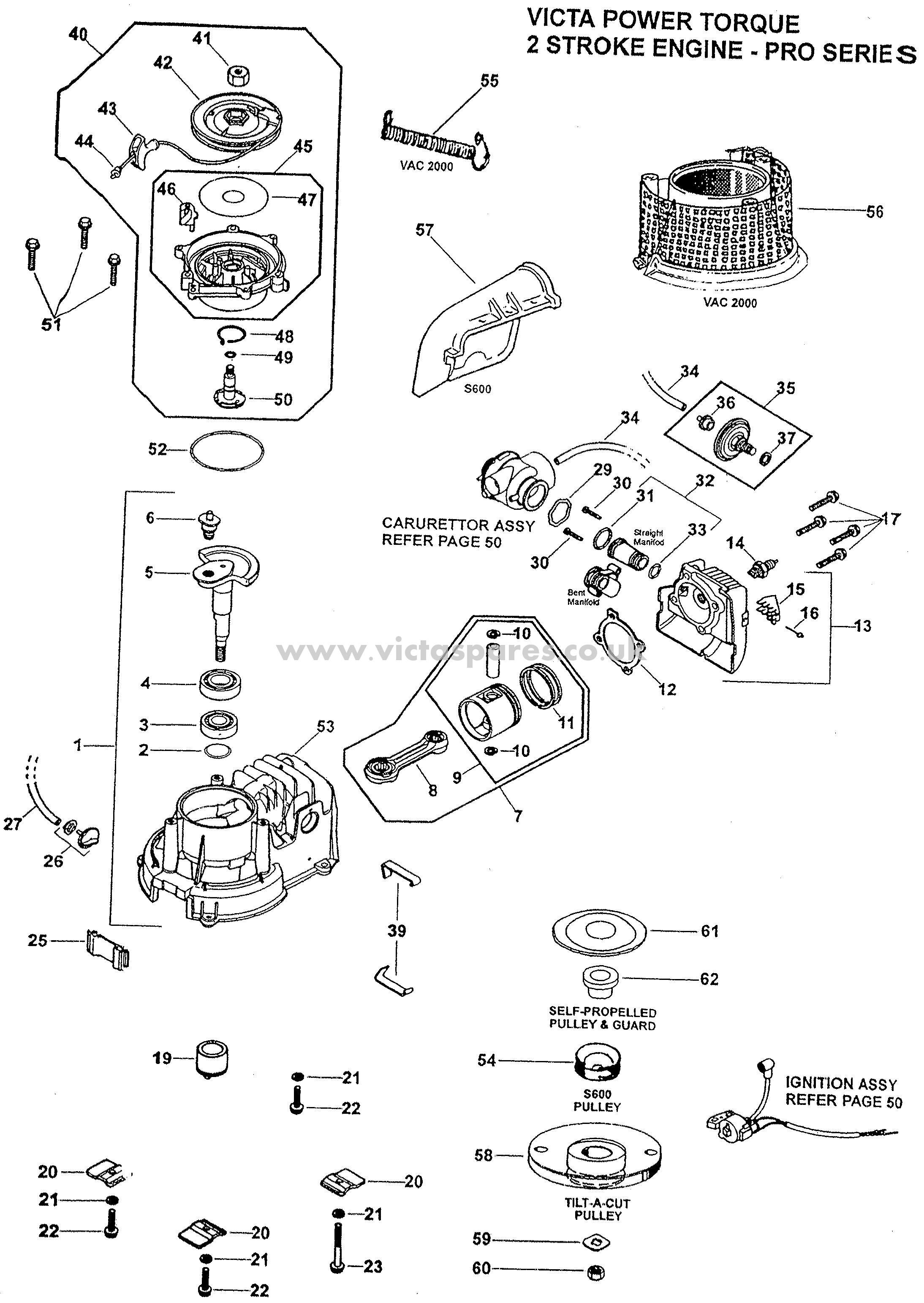

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	EN73046A	NO LONGER AVAILABLE	N/A	POA
	EN73051A	ENGINE 2ST 505 HT 99 DNR	£559.60	Add
	EN73022A	ENGINE 2ST PRO S600 HI COMP 97	£703.80	Add
	EN73045A	ENGINE 2ST PRO UTE HT 99	£435.59	Add
	EN73023A	ENGINE ASSY 2ST T-A-C 97	£592.54	Add
	EN73024A	ENGINE ASSY 2ST V-VAC 97 (RED)	£703.80	Add
	EN73070A	ENGINE VSX160	£432.10	Add
001	EN72930E	SHORT ENGINE ASSY SHORT SHAFT	£390.72	Add
002	HA25525A	BEARING SEAL	£20.53	Add
003	HA25501A	LOWER BEARING	£32.14	Add
004	HA25689A	BEARING MAIN UPPER	£31.10	Add
005	EN02118A	CRANKSHAFT (SHORT)	£208.74	Add
006	EN02109B	CRANKPIN	£106.88	Add
007	EN02142AZ	PISTON AND CONROD ASSY	£216.64	Add
008	EN02148AZ	CONROD & BEARING ASSY	£103.12	Add
010	EN70709U	CIRCLIP PISTON	£6.56	Add
012	VBP0017	CYLINDER HEAD GASKET	£7.27	Add
015	EN73089A	NO LONGER AVAILABLE	N/A	POA
016	HA25531U	RIVET PLUG GUARD (RED)	£3.42	Add
017	HA21244D	NO LONGER AVAILABLE	N/A	POA
020	CH84916A	SUPPORT PLATE (RED)	£6.94	Add
021	HA23140D	WASHER (RED)	£6.08	Add
022	HA21256D	SCREW	£6.56	Add
023	HA21311D	BOLT	£7.40	Add
025	EN73000A	INSERT ENGINE BLOCK MK96 (RED)	£15.79	Add
026	CR03727P	NO LONGER AVAILABLE	N/A	POA
027	HA25948A	FUEL LINE (RED)	£6.56	Add
029	CR03479B	WAVY WASHER	£6.94	Add
030	HA21248D	SCREW (RED)	£6.56	Add
031	VBP0023	O RING MFOLD	£4.62	Add
033	CR03227A	O RING	£4.49	Add
034	HA25934S	TUBE	£8.30	Add
037	EN71052D	GASKET	£6.56	Add
039	EN72560B	MUFFLER CLIP	£11.31	Add
040	ST12811AZ	STARTER ASSY	£203.90	Add
041	ST12633U	NUT STARTER ZINC (SPARES ONLY)	£9.33	Add
042	LK-VSP18	PULLEY RECOIL SPRING ASSY (OBSOLETE) (OBSOLETE)	N/A	POA
043	ST12572U	KNOB STARTER	£8.65	Add
044	ST12038U	CORD- NYLON (SPARES ONLY) (OBSOLETE) (OBSOLETE)	N/A	POA
045	ST12811AZ	STARTER ASSY	£203.90	Add
046	ST12817AZ	WIRE EYELET STARTER	£14.89	Add
047	ST12672A	STARTER PLATE	£7.85	Add
048	ST12624U	FRICTION SPRING (OBSOLETE)	N/A	POA
049	HA25506U	O RING STARTER SHAFT TO HOUSING	£7.06	Add
050	ST12811AZ	STARTER ASSY	£203.90	Add
051	HA21244D	NO LONGER AVAILABLE	N/A	POA
052	VBP0027	O-RING	£6.18	Add
053	EN72930E	SHORT ENGINE ASSY SHORT SHAFT	£390.72	Add
055	ST12665A	STARTER ROPE GUIDE	£27.25	Add
056	W17133X	FLYWHEEL GUARD - VAC 2000	N/A	POA
057	EN72718A	DEFLECTOR (RED)	£78.33	Add
058	ME63295G	PULLEY ASSY	£384.28	Add
059	HA25131D	CIRCLIP	£8.01	Add
060	CH85985A	MUFFLER HOLE COVER (RED)	£7.85	Add
061	EN72860A	BELT GUARD	£85.85	Add
062	EN73016B	NO LONGER AVAILABLE	N/A	POA
09a	EN72841A	PISTON ASSY (OBSOLETE) (OBSOLETE)	N/A	POA
09b	EN72842A	NO LONGER AVAILABLE	N/A	POA
09d	EN72844A	PISTON ASSY	£94.50	Add
11a	EN70743P	RING SET DNR	£40.77	Add
11b	EN70740P	RING SET + 20	£54.76	Add
11c	EN70742P	RING SET + 40 (RED)	£71.52	Add
11d	EN72322P	RING SET + .060 (RED)	£35.32	Add
13a	EN73015A	NO LONGER AVAILABLE	N/A	POA
13b	EN73015A	NO LONGER AVAILABLE	N/A	POA
14b	HA25715P	SPARK PLUG BPMR4A NGK 10 PACK	£151.71	Add
14c	HA25715T	SPARK PLUG - BPMR4A (200 Pack)	N/A	POA
19a	EN72644B	SLEEVE	£71.53	Add
19b	EN73016B	NO LONGER AVAILABLE	N/A	POA
19c	EN73013B	SLEEVE 2ST MUSHROOM H/D (RED)	£136.64	Add
32a	CR03740A	INLET MANIFOLD O RING	£44.85	Add
32b	CR03726A	MANIFOLD	£46.11	Add
35a	EN72541P	DECOMPRESSOR (OBSOLETE) (OBSOLETE)	N/A	POA
35b	EN72135P	NO LONGER AVAILABLE	N/A	POA
36a	EN72931U	NOZZLE VACUUM PIPE MIKII (OBSOLETE)	N/A	POA
54a	EN72980A	DRIVE PULLEY	£139.64	Add
54b	EN72980A	DRIVE PULLEY	£139.64	Add
