FG417_0030 - 2 STROKE ENGINE COWLINGS & FUEL TANKS

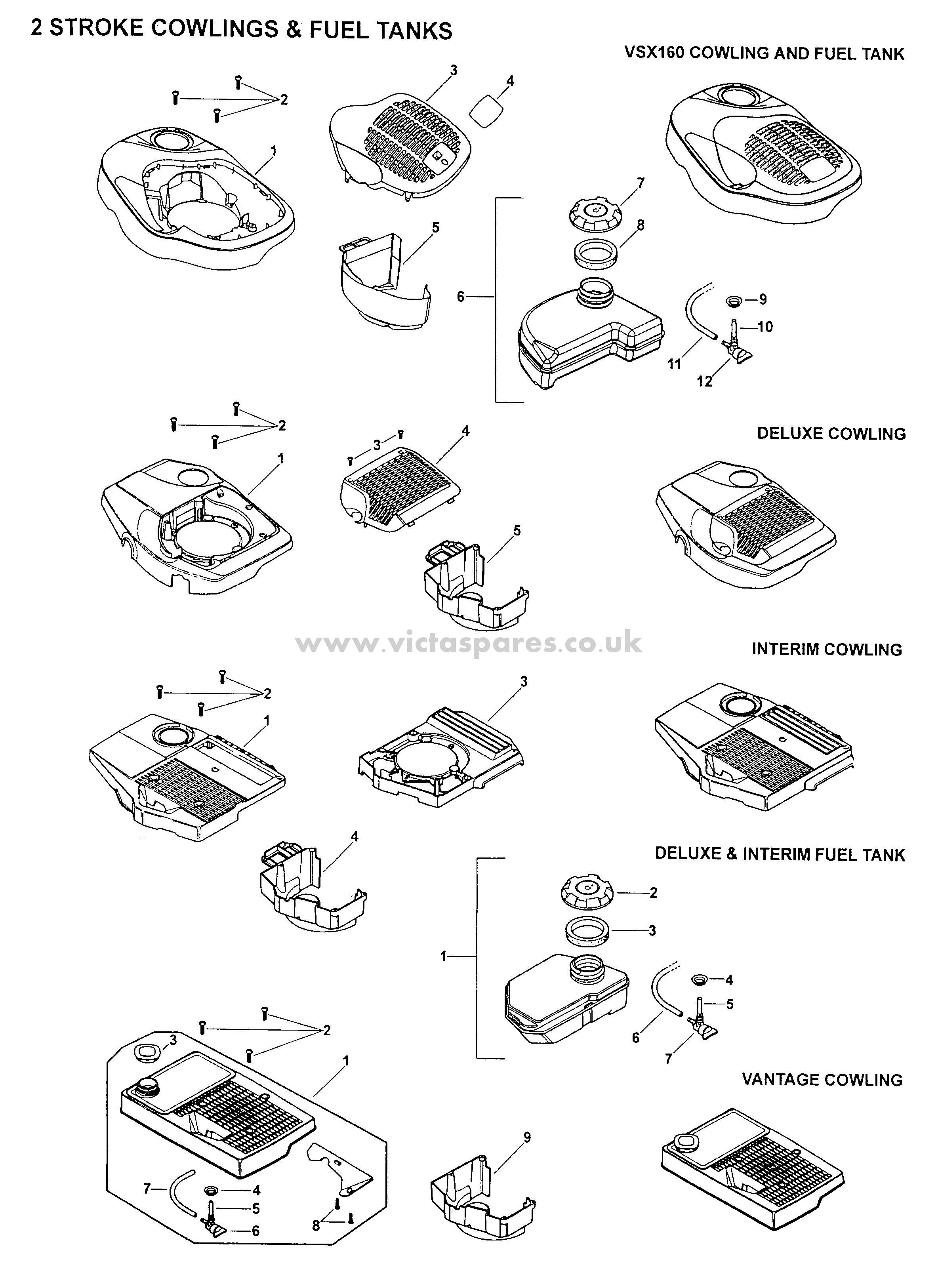

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EN72780A	NO LONGER AVAILABLE	N/A	POA
001	EN72687A	TANK ASSEMBLY (RED)	£136.22	Add
002	EN72580B	CAP-FUEL-LARGE-BAGGED	£21.85	Add
002	HA20322D	SCREW	£5.47	Add
002	HA20322D	SCREW	£5.47	Add
002	HA20322D	SCREW	£5.47	Add
002	HA20322D	SCREW	£5.47	Add
003	EN73057A	INTAKE GRILL (BLACK)	£21.79	Add
003	HA21305D	* HI LO FASTENER DELUX COWL (RED)	£5.90	Add
003	EN71969A	NO LONGER AVAILABLE	N/A	POA
003	EN72701A	SEAL	£6.56	Add
004	EN72490D	NO LONGER AVAILABLE	N/A	POA
004	EN72918A	DUCT GREY	£48.87	Add
004	EN72490D	NO LONGER AVAILABLE	N/A	POA
004	EN72960A	INTAKE GRILLE (RED)	£59.18	Add
004	LB02134A	LABEL	£7.18	Add
005	EN73058A	DUCT	£30.72	Add
005	HA25664A	[VSX160 COWLING & FUEL TANK] FUEL FILTER - PACK OF 10	£89.12	Add
005	HA25664A	[VSX160 COWLING & FUEL TANK] FUEL FILTER - PACK OF 10	£89.12	Add
006	HA25934S	TUBE	£8.30	Add
006	EN72866B	fuel tap assy (OBSOLETE) (OBSOLETE)	N/A	POA
006	EN73062A	FUEL TANK (RED)	£112.47	Add
007	EN72580B	CAP-FUEL-LARGE-BAGGED	£21.85	Add
007	HA25934S	TUBE	£8.30	Add
007	EN72866B	fuel tap assy (OBSOLETE) (OBSOLETE)	N/A	POA
008	HA20392D	SCREW - HEAT SHIELD	N/A	POA
008	EN72701A	SEAL	£6.56	Add
009	EN72490D	NO LONGER AVAILABLE	N/A	POA
009	EN72917A	DUCT	£32.90	Add
010	HA25664A	[VSX160 COWLING & FUEL TANK] FUEL FILTER - PACK OF 10	£89.12	Add
011	HA25932A	FUEL LINE	N/A	POA
012	EN72866B	fuel tap assy (OBSOLETE) (OBSOLETE)	N/A	POA
01A	EN73004A	COWL & HEATSHIELD SUBASSY BLACK	£98.36	Add
01A	EN73056N	COWLING - RED	N/A	POA
01A	EN72919A	COWL BLACK. PRO 460 (RED)	£39.03	Add
01B	EN72919A	COWL BLACK. PRO 460 (RED)	£39.03	Add
01B	EN73056V	COWLING - SILVER	N/A	POA
01B	EN73004N	COWL & HEATSHIELD SUBASSY RED	£79.07	Add
01C	EN73004V	COWLING - GREY	N/A	POA
01C	EN72919V	COWLING - SILVER	N/A	POA
01D	EN73004Y	COWLING - YELLOW	N/A	POA
01E	EN73004F	COWLING - GOLD	N/A	POA
03A	EN72920A	NO LONGER AVAILABLE	N/A	POA
03B	EN72920G	SUB COWL - BLACK	N/A	POA
05A	EN72992A	DUCT ENGINE DELUX COWL ONLY (RED)	£81.33	Add
05B	EN72992Z	AIR DUCT - KEYSTART	N/A	POA
