FG406_19300 - CHASSIS ASSY.

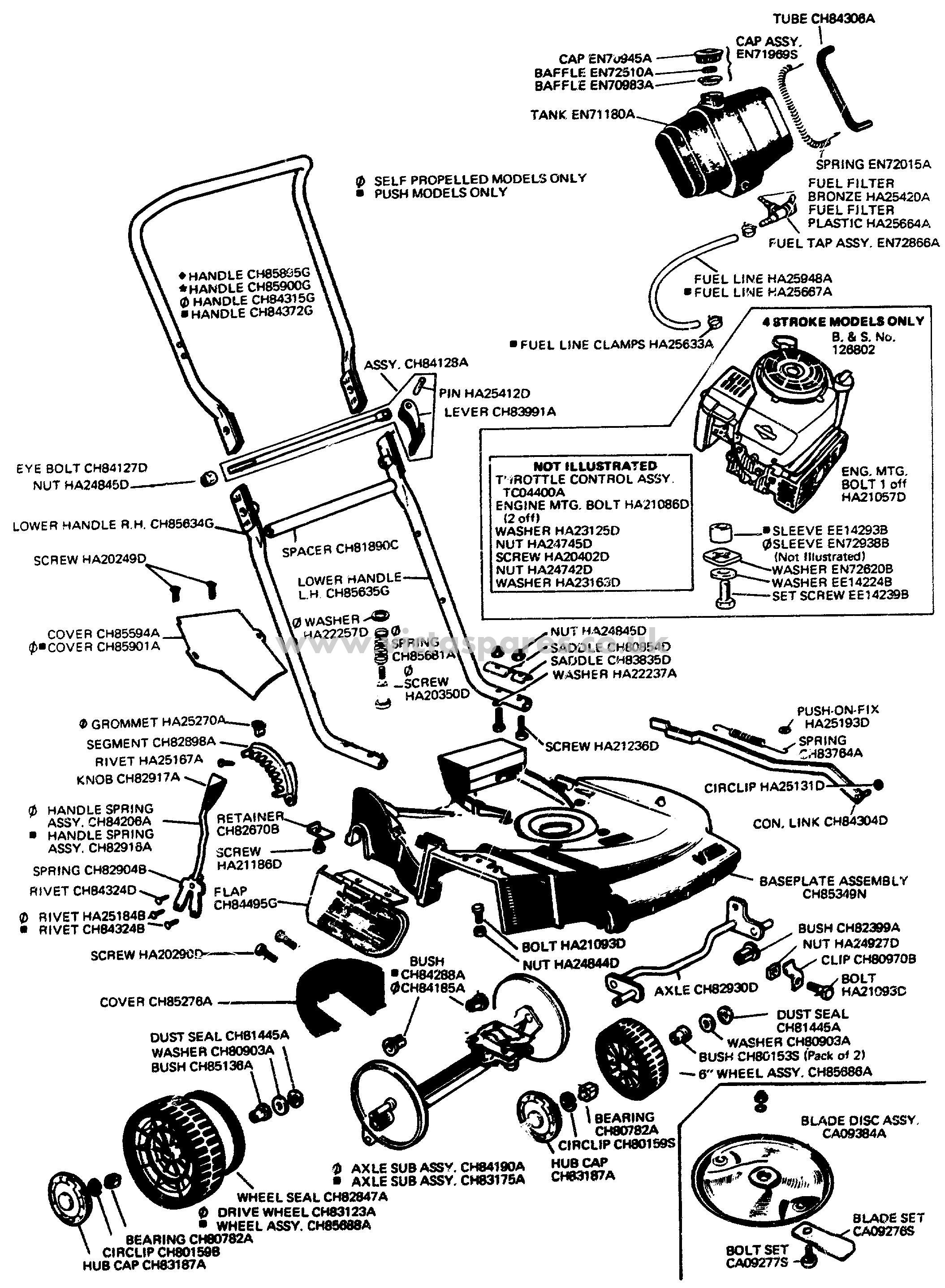

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

No	Description	Price
CH84306A	NO LONGER AVAILABLE	N/A	POA
EN71969A	NO LONGER AVAILABLE	N/A	POA
EN71969A	NO LONGER AVAILABLE	N/A	POA
EN71969A	NO LONGER AVAILABLE	N/A	POA
EN71969A	NO LONGER AVAILABLE	N/A	POA
EN71180A	FUEL TANK	£228.12	Add
EN72015A	SPRING	£16.62	Add
HA25420A	NO LONGER AVAILABLE	N/A	POA
HA25664A	[VSX160 COWLING & FUEL TANK] FUEL FILTER - PACK OF 10	£89.12	Add
EN72866B	fuel tap assy (OBSOLETE) (OBSOLETE)	N/A	POA
HA25948A	FUEL LINE (RED)	£6.56	Add
HA25667A	FUEL LINE	N/A	POA
HA25633A	CLAMP	£12.20	Add
CH85091A	Lever Assy Locking	£45.24	Add
HA25412D	PIN	£6.56	Add
CH84011A	NO LONGER AVAILABLE	N/A	POA
126802	B. & S. NO	N/A	POA
HA21057D	BOLT	£5.42	Add
EE14293B	SLEEVE	£68.86	Add
EN72938B	SLEEVE-PULLEY 550 4ST	£131.82	Add
HA25131D	CIRCLIP	£8.01	Add
EE14224B	BLADE DISC WASHER	£1.47	Add
CH80854G	SADDLE PLATE	£10.11	Add
CH86028G	NO LONGER AVAILABLE	N/A	POA
CH86028G	NO LONGER AVAILABLE	N/A	POA
CH86028G	NO LONGER AVAILABLE	N/A	POA
CH84372G	UPPER HANDLE	£1.47	Add
CH81890G	SPACER (RED)	£89.55	Add
CH86602GW	550 LOWER HANDLE LH VSD	£72.11	Add
HA22141D	NO LONGER AVAILABLE	N/A	POA
CH85681A	SPRING	£6.94	Add
HA20350D	SCREW	£20.74	Add
CH84127D	EYE BOLT	N/A	POA
EN72770B	SLEEVE PULLEY	£111.23	Add
CH86603GW	550 LOWER HANDLE RH VSD	£74.51	Add
HA20249U	SCREW NO 8X5/8P P/R MUSH H (RED)	£7.19	Add
CH85594A	COVER	£32.37	Add
CH85901A	COVER 550 4ST BELT	£33.26	Add
HA25270A	GROMMET	£6.56	Add
CH82898A	QUADRANT	£18.93	Add
CH83835D	SADDLE	£7.85	Add
CH81445A	DUST SEAL	£4.11	Add
CH82670B	RETAINER (RED)	£6.94	Add
HA21186D	NO LONGER AVAILABLE	N/A	POA
CH86162G	NO LONGER AVAILABLE	N/A	POA
CH84206A	NO LONGER AVAILABLE	N/A	POA
CH82916A	NO LONGER AVAILABLE	N/A	POA
CH81754A	KNOB (RED)	£15.36	Add
CH86334A	8 INCH WHEEL MASTER SERIES	£68.57	Add
CH86334A	8 INCH WHEEL MASTER SERIES	£68.57	Add
CH86334A	8 INCH WHEEL MASTER SERIES	£68.57	Add
HA20415D	SCREW	£6.56	Add
CH85276A	COVER	£23.07	Add
CH82917A	KNOB	£11.56	Add
CH84861A	BUSH	£5.47	Add
CH85136U	NO LONGER AVAILABLE	N/A	POA
CH84288A	BUSH	£8.85	Add
CH84185U	AXLE BUSH REAR	£9.36	Add
HA21093D	NO LONGER AVAILABLE	N/A	POA
HA24844D	NUT	£6.56	Add
VBP0024	BEARING WHEEL	£14.13	Add
CH86344D	HEIGHT ADJUSTER	£55.21	Add
CH85943A	SPRING	£17.76	Add
CH84190A	NO LONGER AVAILABLE	N/A	POA
CH83175A	NO LONGER AVAILABLE	N/A	POA
CH82847A	SEAL DRIVE WHEEL (RED)	£31.40	Add
CH86333A	NO LONGER AVAILABLE	N/A	POA
CH86248A	WHEEL	£98.68	Add
VBP0024	BEARING WHEEL	£14.13	Add
CH86344D	HEIGHT ADJUSTER	£55.21	Add
CH85943A	SPRING	£17.76	Add
EN72770B	SLEEVE PULLEY	£111.23	Add
EN73054B	BLADE DISC WASHER (4.5) (OBSOLETE) (OBSOLETE)	N/A	POA
HA25167A	RIVET	£6.56	Add
HA25318D	PUSH-ON-FIX (OBSOLETE)	N/A	POA
HA25193D	PUSH-ON-FIX (RED)	£6.56	Add
CH83764A	NO LONGER AVAILABLE	N/A	POA
HA21095D	SCREW	£6.56	Add
EN72620B	NO LONGER AVAILABLE	N/A	POA
CH86345D	LINK ASSY	£60.87	Add
CH85349N	BASEPLATE ASSEMBLY	£574.92	Add
CA09445G	BLADE DISC ROUND REINFORCED '03	£130.48	Add
HA24927D	NUT (RED)	£3.14	Add
CH80970B	CLIP (RED)	£6.94	Add
HA21093D	NO LONGER AVAILABLE	N/A	POA
CH86309AW	FRONT AXLE 550	£137.24	Add
CH82917A	KNOB	£11.56	Add
CH84861A	BUSH	£5.47	Add
CH80153S	NO LONGER AVAILABLE	N/A	POA
CH86246A	FRONT WHEEL ASSY. CH83357A	N/A	POA
CH82399A	BUSH	£7.27	Add
CA09276B	KIT-BLADE & BOLT 560 & S600 (OBSOLETE)	N/A	POA
EN73054B	BLADE DISC WASHER (4.5) (OBSOLETE)	N/A	POA
